FLAT BELLOWS
Representative bellows covers designed to protect various equipment as covers for exposed openings.

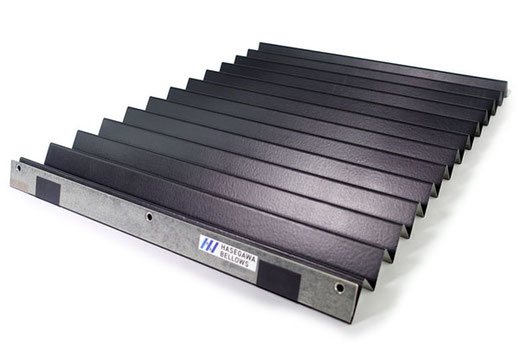

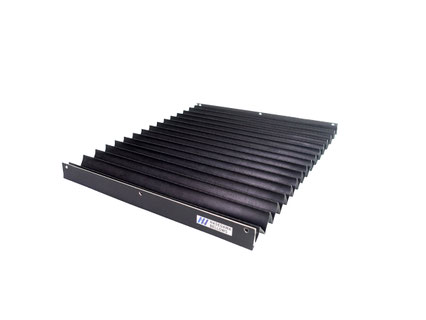

Folded Type
A standard flat bellows, constructed from laminated rubber-coated fabric and PET film.
Ideal for dust protection, safety applications, and covering exposed openings. Suitable for horizontal operation. Available in a wide range of sizes and fabric materials, offering excellent durability.

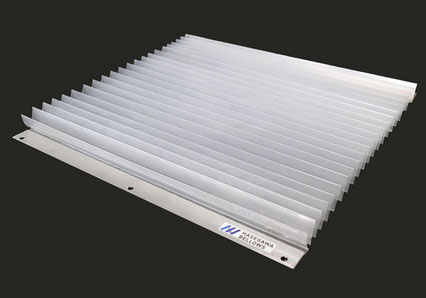

PP Type
A simple and economical design made from PP film.
Lightweight and resistant to water, chemicals, and oil while providing effective dust protection. Its low particle generation makes it well suited for food-processing machinery. Ideal for applications requiring protection in narrow gaps.

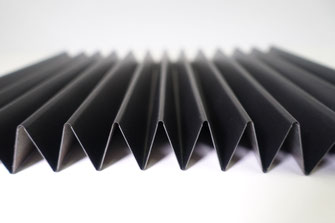

Molded Type
Manufactured from molded rubber with reinforcing fabric.
Suitable for dust protection, safety applications, and covering exposed openings. Its flexible construction allows smooth operation in vertical and horizontal
applications.

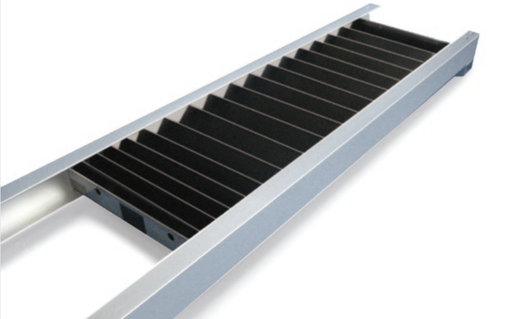

Flat Bellows Installation Example
Flat bellows require guide rails, as shown in the illustration, to ensure stable expansion and contraction. If guide rails cannot be installed, we will recommend a more suitable type of bellows.
